Product Description
Overview

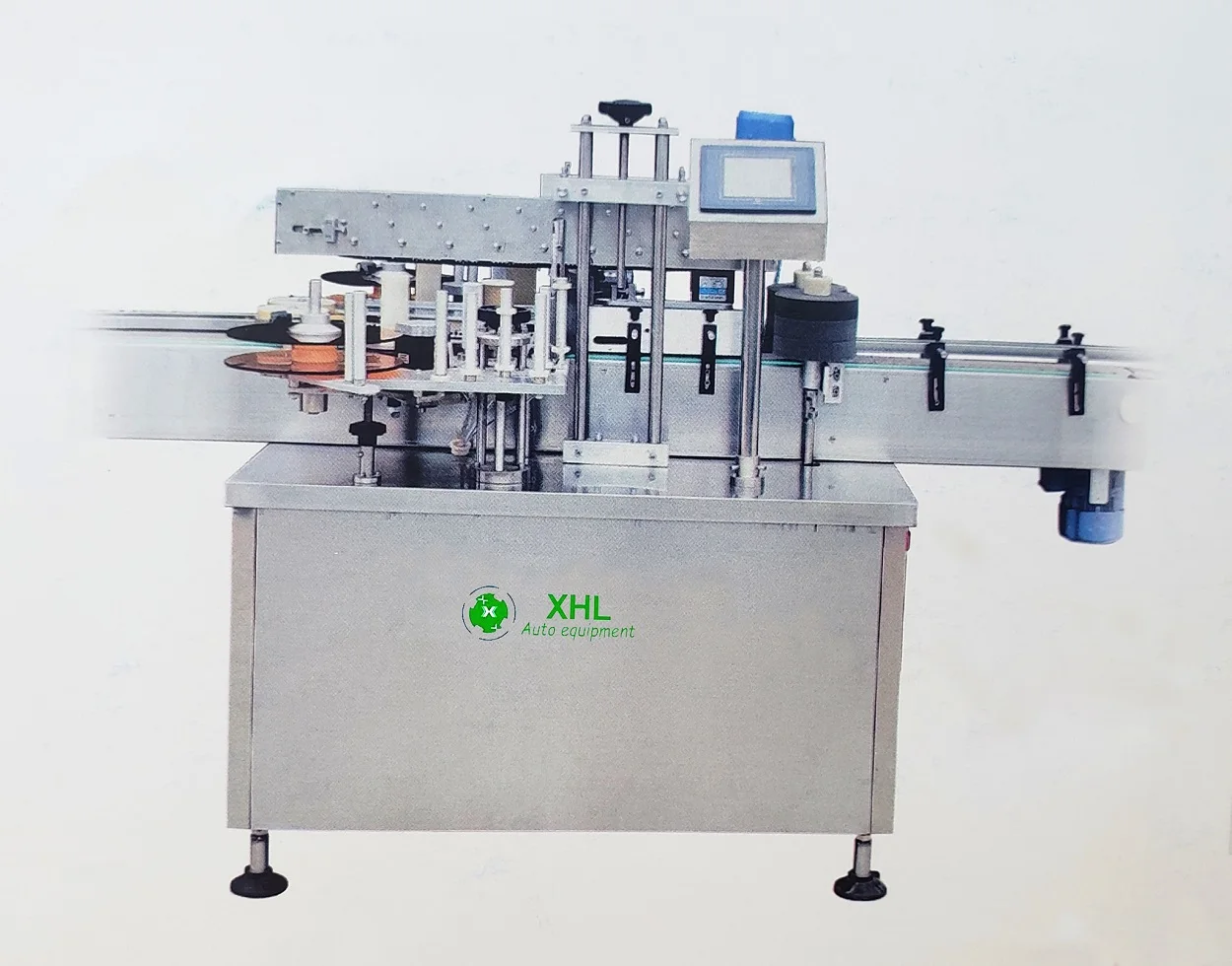

This series machine is applied to stick the side of flat & square in the field of pharmaceutical, pesticide, chemical,foodstuff,etc. It is able to auto separating bottle,feeding label belt, separating label, sticking and auto printing codes. It is equipped with large torque step in motor of servo motor and imported photoelectric controlled PLC to ensure the accuracy, stability,reliability and high efficiency.
Main Technical Parameter
| Applied range: | (flat/square bottles) width 30-90mm,height ≤300mm | Production capacity: | Max 150 bottles/min |
| Tolerance of labeling quantity: | ±1mm | Label size: | Inner diameter of lebel reel:76 mm, max diameter of label reel:380mm,Width of label:20~140mm, Length of label:30~300mm |
| Power supply: | 220V 50Hz(can be customizable) | Power consumption: | 2.1kw |
| Dimension(mm): | 3000*1400*1500 | Weight: | 700kg |
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling production line.
-Exclusive manufacturing factory of 20,000 square meters (Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity and demands.
We will provide you with associated design solutions and case videos.
