Overview
Automatic spiral bucket filling machine is suitable for filling powder and fine powder products. Automatic metering, filling, air washing. The auger is driven by a servo motor for measurement and filling. Used for filling powder. It is suitable for the packaging of milk powder, monosodium glutamate, solid beverage, icing sugar, coffee powder, solid medicine, powder particle additive, dye agent and so on.
Feature
-Wide-opening double doors, totally transparent function of all the machine parts are easily observed, easy maintenance, easy access.
-The whole stainless steel, the hydraulic-pneumatic rise and fall, operate simple relaxed.
-For the easy flow material, the discharging spout is equipped with a flip shutter to prevent leakage and drops which may affect the pouch sealings.
-Electrical equipment: all adopt imported foreign brands, servo moter, PLC smart control panel, frequency variable speed control, radio frequency material level control, contactor circuit of stirring motor and feeding motor, exhaust fan, nitrigon filling flow and timing control system.
Main Technical Parameter
| ITEM | DCS-3BL(High speed) | DCS-3BL | DCS-3AL |
| Metering mode: | Screw filling |
| Hopper diameter: | 25-90mm | 25-100mm | 20-46mm |
| Weight Manage: | 10-2000g | 10-3000g | 1-500g |
| Packing accuracy: | ≤±1.5 - 1%(according to packing weight and product specs) |
| Packing speed: | 20-100 times/min | 20-60 times/min | 20-60 times/min |
| Power supply: | 380/220V 50/60Hz(Can be customizable) |
| Power consumption: | 3kw | 2.5kw | 1.2kw |
| Machine weight: | 220kg | 150kg | 100kg |
| Machine size(not incl.the hopper length): | 600*1250*2000 | 690*10300*11000 | 510*585*930 |
| Hopper size: | 110L | 60L | 26L
|

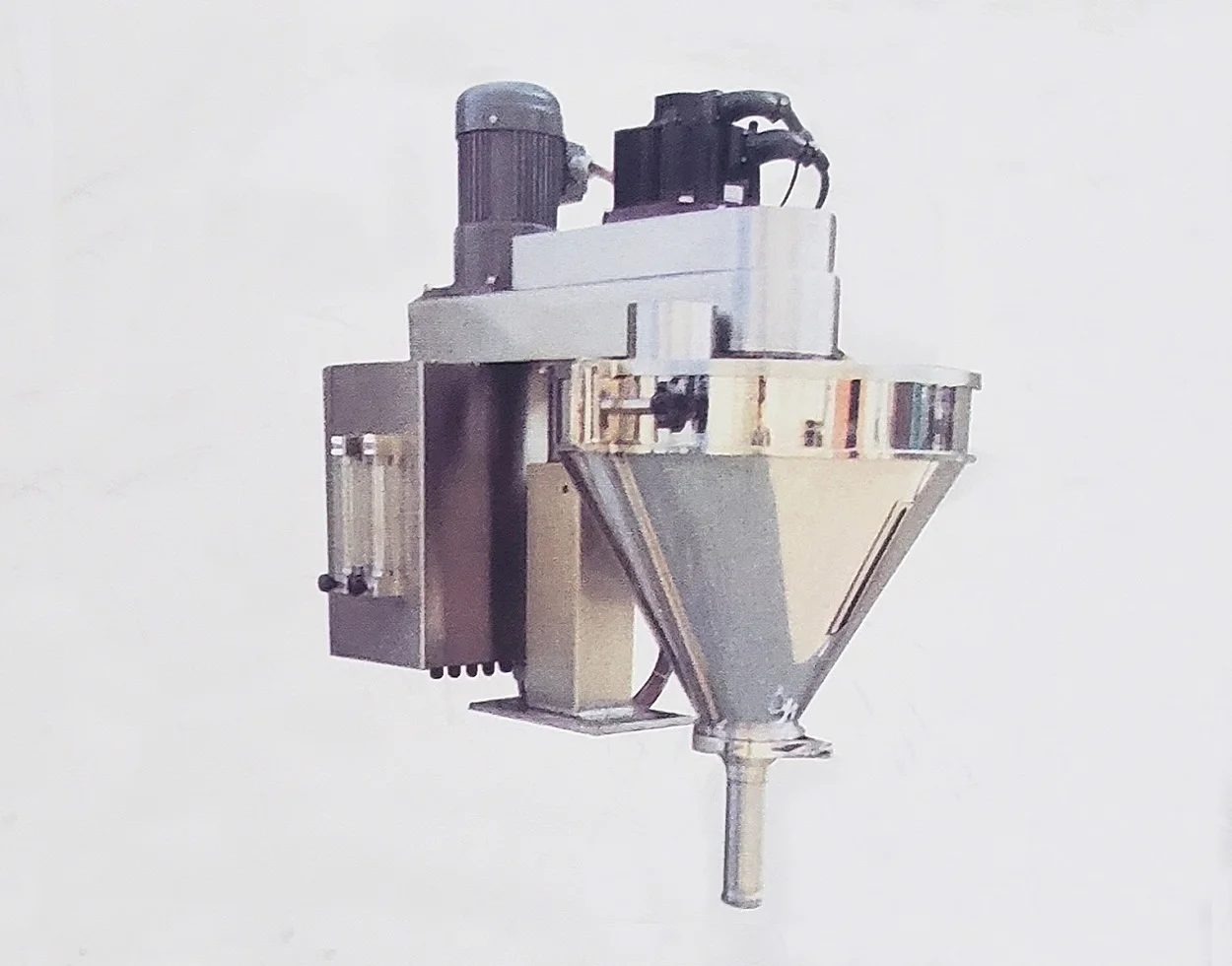

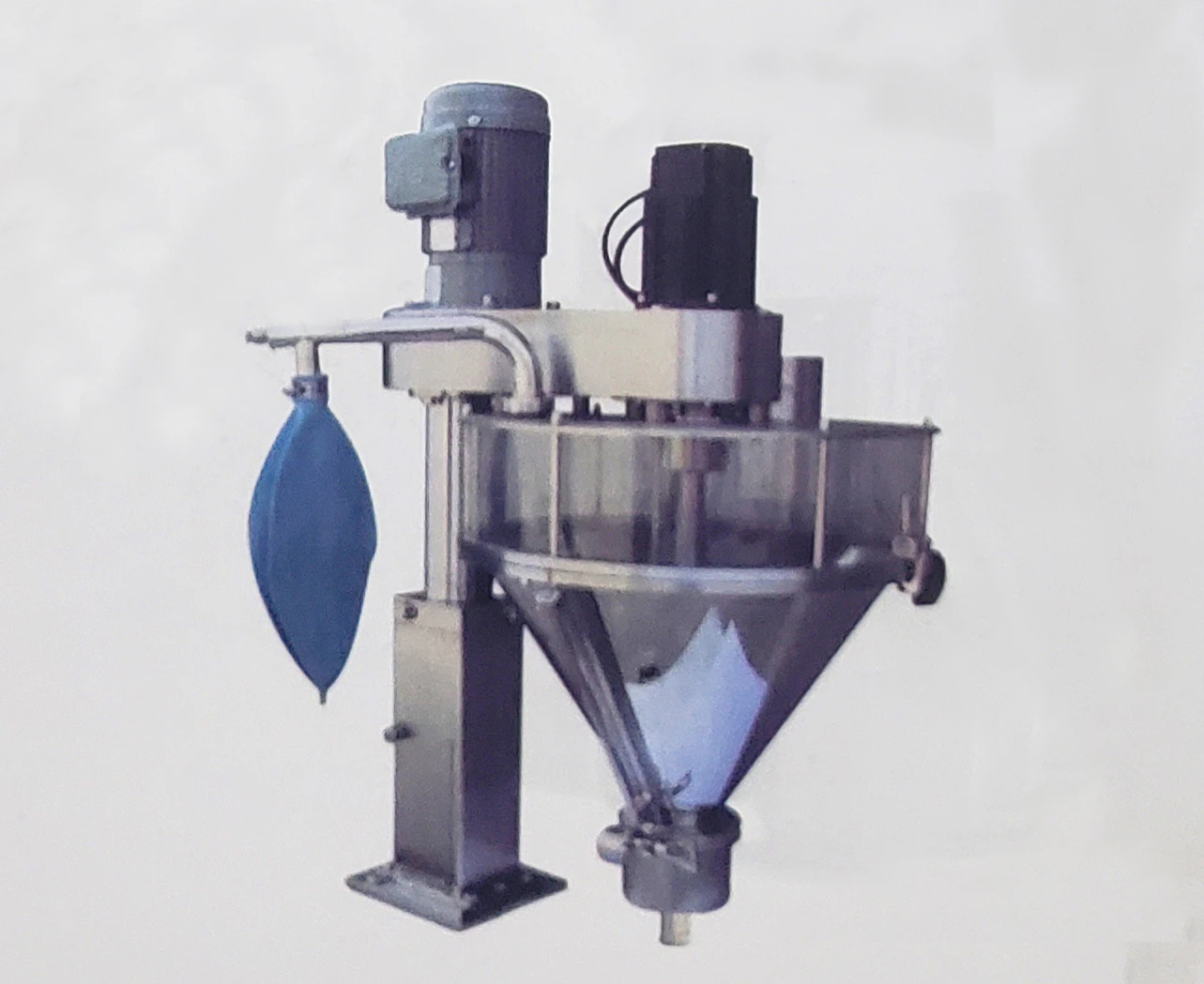

Product Image
